SUMMARY



Intraoral X Ray

X-ray generators incorporating features ranging from wireless control to touch-sensitive HyperSphere technology.

For more information:  http://www.my-ray.com/site/page.wplus?ID_COUNT=radiographics&LN=2

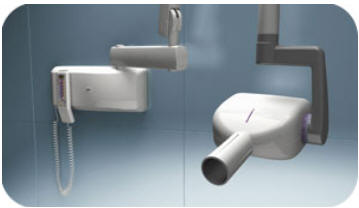

RXAC AC technology X-ray unit





RXAC is a conventional unit built with resistant lightweight materials and designed to offer full compatibility with traditional and digital X-ray systems.

More information online:

Technical Data

Product Brochure






Straightforward and reliable

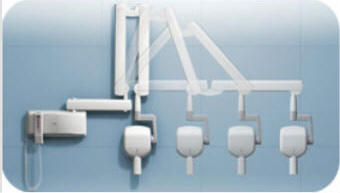

Solid design features and perfectly balanced arms prevent vibration of the tube head right through to the unit’s maximum extension of 199 cm.

Intuitive icons and soft-touch keys make for quick and easy settings, including exposure times and film sensitivity or digital sensor mode.

The shock-resistant handheld control device is fitted with an extension lead or is available in a remote control version.

Mains voltage fluctuation is compensated for via a unit-integrated microprocessor, thus ensuring correct exposure times automatically.

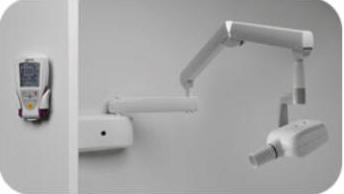

RXDC eXTend High frequency X-ray unit





For more information: http://www.my-ray.com/site/page.wplus?ID_COUNT=RXDC&LN=2


RXDC eXTend combines practical wireless simplicity with intelligent design to provide the dentist with precision equipment enabling accurate imaging a low X-ray doses.

More info online:

Product Brochure

Technical Data

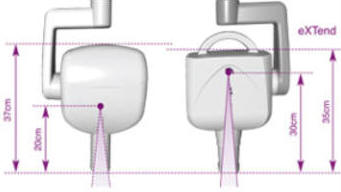

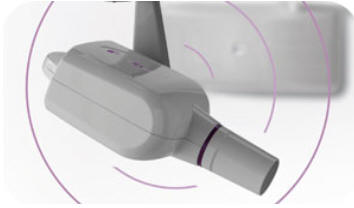

RXDC eXTend’s compact tube-head features a long internal collimation of the X-ray beam, achieving a default 12” (30 cm) source-to-skin distance, which allows for sharper images and vital diagnostic detail.

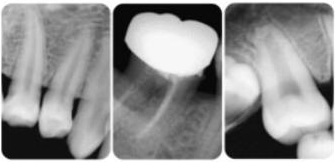

Sharper images are obtained thanks to a 0.7 mm focal spot and the outstanding parallelism achieved via 12” (30 cm) embedded collimation.

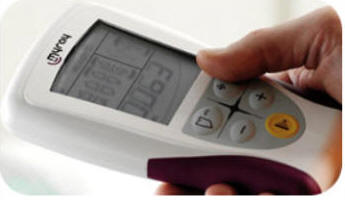

Easy controls

The wireless control device, which can be attached to any available surface in the surgery, offers a full range of intuitive exposure scenarios designed to make correct X-ray acquisition a straightforward process.

Minimal radiation

The constant potential high frequency X-ray generator together with the embedded 12” (30 cm) collimation increases X-ray parallelism, leading to better image quality and significantly lower X-ray dosage.

The control unit records the dose to which the patient is exposed in mGy*cm2.

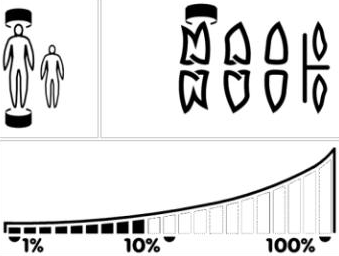

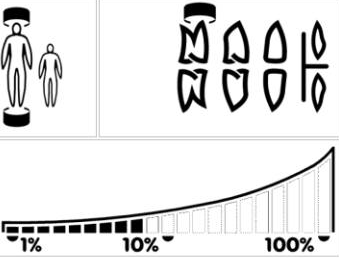

MyRay Multi-Mode

The most appropriate combination of technical factors (kV, mA and exposure time) is automatically determined according to patient size and anatomic region of interest.

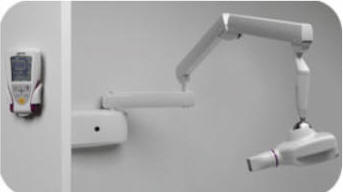

RXDC HyperSphere Plus High frequency X-ray unit





RXDC HyperSphere Plus incorporates an ergonomically advanced touch-activated positioning technology and the freedom of wireless control.

More information online:

Technical Data

Product Brochure

Video

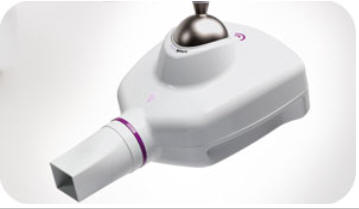

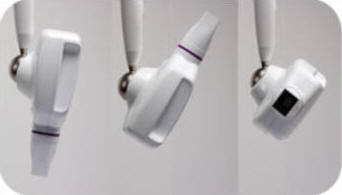

HyperSphere technology

Locked and unlocked by 2 touch-sensitive areas, the tube head revolves freely around the spherical ball-joint, enabling freedom and precision in terms of positioning.

Easy controls

The wireless control device, which can be attached to any available surface in the surgery, offers a full range of intuitive exposure scenarios designed to make correct X-ray acquisition a straightforward process.

MyRay Multi-Mode



The most appropriate combination of technical factors (kV, mA and exposure time) is automatically determined according to patient size and anatomic region of interest

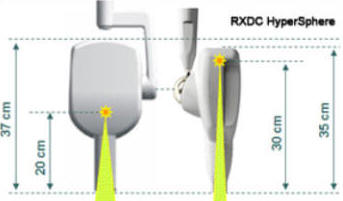

Precision imaging

Excellent parallelism ensured by the incorporated 30 cm (12”) collimation, combined with a 0.4 mm focal spot, places RXDC at the top for image definition quality.
